- Water proof sealing
- Long life cycle 100,000 cycle at rated current
- Defrosting machine
- Commercial freezer-refrigerator
- Heat resistant plastic case.
- Suitable for vacuum impregnation processes
SPECIFICATION
RATING
AC125V / 15A
AC250V
/ 10A
Temperature Range
Open 50¡É to 80¡É
Close 25 to 70
Tolerances
OPEN ¡¾3,¡¾5¡É /
CLOSE ¡¾3,
¡¾5,
¡¾9¡É
Life Cycle
100,000 cycles
Contact Resistance
DC 550V / 100m¥Ø less
No
Item
division
Detailed notation
¨ç

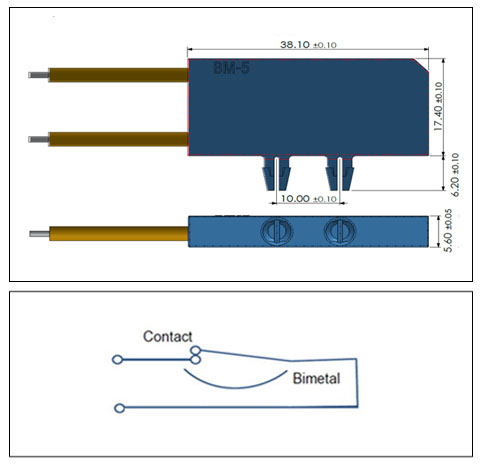

Device Name
BM-5
BM-5
¨è
Open / Close °øÂ÷
A~Z
A : Open/Close ¡¾3¡É
B : Open¡¾3¡É, Close¡¾5¡É
C : Open¡¾5¡É, Close¡¾5¡É
D : Open¡¾5¡É, Close¡¾9¡É
E~Z : customer demand
¨é
Open temperature
00~99
XX : Open ¿Âµµ
¨ê
Close temperature
A~Z
A : 20¡É
¨ë
Base material
A~Z
A : Mold PET / Frame EGI
¨ì
Cover material
A~Z
A : PA66
¨í
House Code
0000~ZZZZ
RATING
AC 125V 15A (UL, TUV, CQC, CB) (100,000 Cycle)
AC 250V 10A (UL, TUV, CQC, KC, CB) (100,000 Cycle)
