- Various application
- Thermal protector prevents overheating
- Gasket steel case suitable for many impregnation processes.
- Wide selection of leads and insulating sleeves.
- Self holding type available
- 100% sealing guaranteed
SPECIFICATION
RATING
AC 125V-20A / AC 250V-8A
Temperature Range
30¡É
to 180¡É
Tolerances
OPEN ¡¾5¡É / CLOSE ¡¾15¡É
(The
CLOSE temperature is only reference data)
Life Cycle
5,000 cycles
MODEL
BM-1 Basic Model
BM-1W High Resistance Model
BM-1U Low Resistance Model
BM-1S Self Holding Model
Terminal Type
A – Terminal on same side
B – Terminal on opposite side
Lead Wire Type (Optional)
None – without wire
L16 – AWG 16
L18 – AWG 18
L20 – AWG 20
L22 – AWG 22
P0.5 – ¨ª 0.5mm Solid Wire
P0.8 – ¨ª 0.8mm Solid Wire
P1.0 – ¨ª 1.0mm Solid Wire

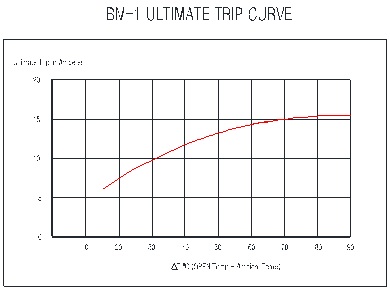

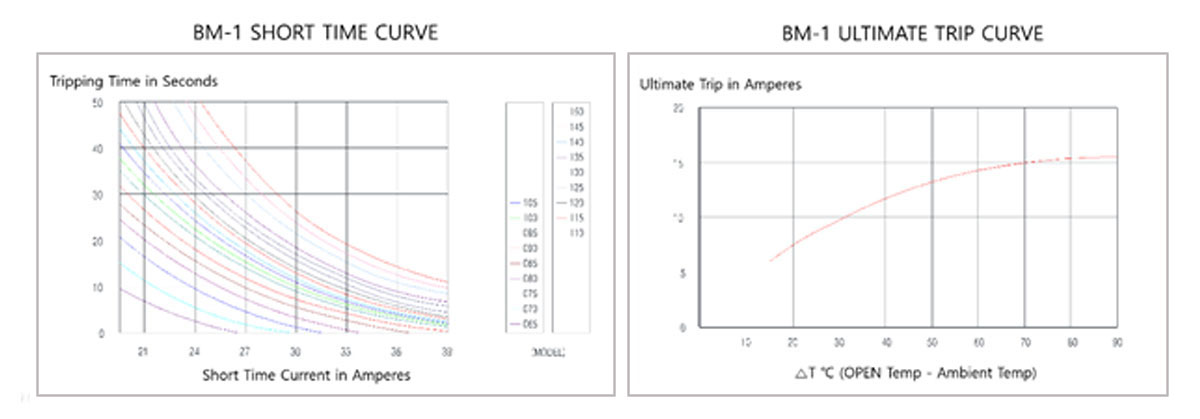

Performance curve
Operating theory
[DRAWING 1]

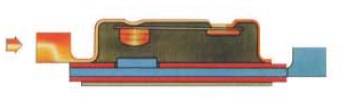

The current start to flow through the arrow direction
Lead connection – can crimp
Terminal – bimetal disc – matching contact
[DRAWING 2]

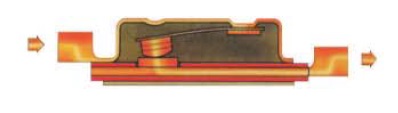

When the current or temperature is rising, the heat is
Generated or transferred to bimetal disc.
The disc snaps open at calibrated open-temperature
[DRAWING 3]
The disc snaps closed when the
Disc cools down up to the reset-temperature
RATING
AC 125V 20A 6000 Cycle (UL)
AC 250 8A 6000 Cycle (UL, KC)
AC 120V 5.5A 10,000 Cycle (UL)
AC 200V 2A 10,000 Cycle (UL)
AC 277V 1.76A 10,000 Cycle (UL)
AC 125V 18A 6,000 Cycle (UL)
AC 250V 9A (VDE, CQC)
AC 240V 10A (VDE)
AC 250V 1.5A (VDE)
AC 115V 22A (CQC)
DC 16V 20A (CQC)
