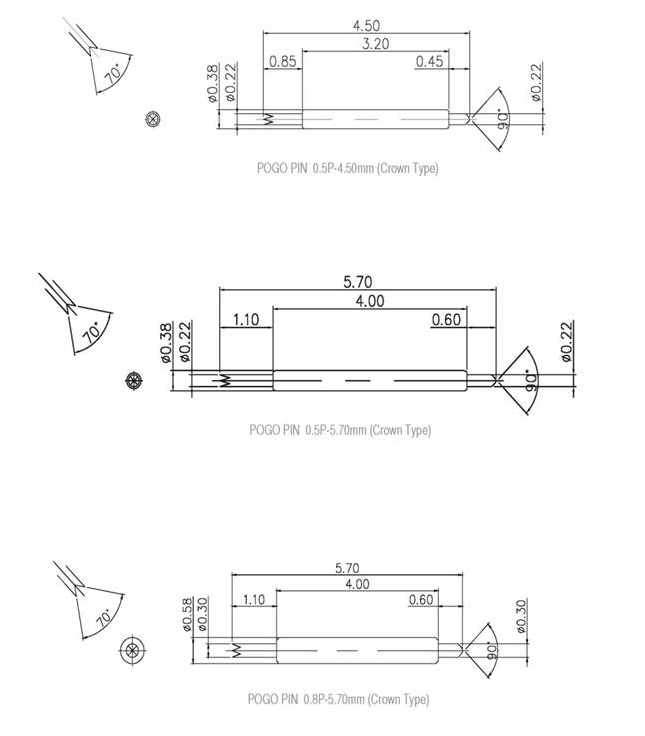

Model 0.5P - 4.50 0.5P - 5.70 0.8P - 5.70
POGO Type Crown Type Crown Type Crown Type
Test Device Pich 0.5 mm 0.5 mm 0.8 mm
Barrel Dia.  D 0.38 mm 0.38 mm 0.58 mm
Free/Operating Length  L 4.50/4.10 mm 5.70/5.05 mm 5.70/5.05 mm
Operating Stroke0.40(0.20+0.20) mm 0.65(0.35+0.30) mm 0.65(0.35+0.30) mm
Tip Plunger Angle  A 70 degrees 70 degrees 70 degrees
Tip Plunger Angle  B 90 degrees 90 degrees 90 degrees
Spring Force (@W/S) 25±5 g·f
25±5 g·f
29±5 g·f
Operating Temperature-55℃ ~ +125 ℃
-55℃ ~ +125 ℃
-55℃ ~ +125 ℃
Resistance @ Initial 100 mohm Max
100 mohm Max
100 mohm Max
Life Cycle 100,000 Cycle 100,000 Cycle 100,000 Cycle
