HOME >PRODUCT > POGO PIN

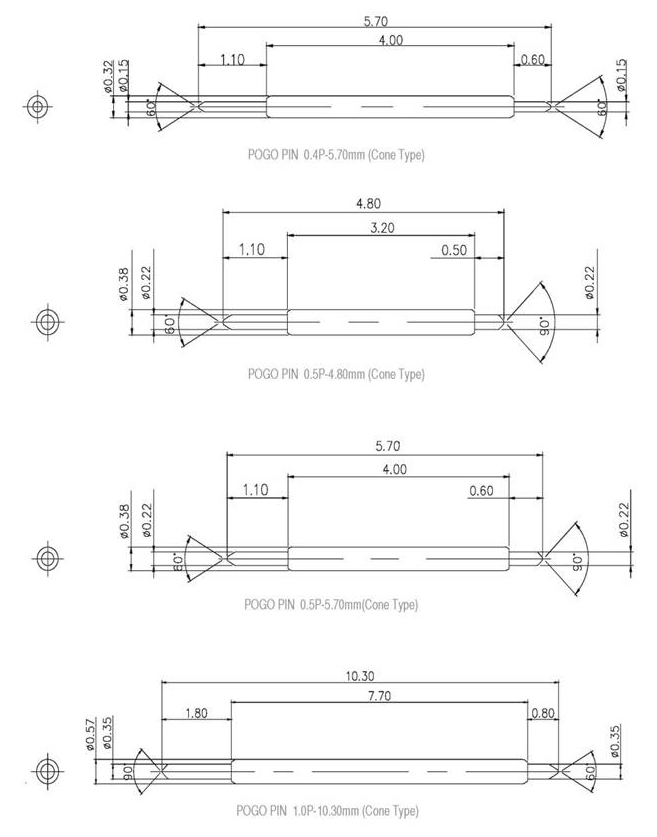

Model 0.4P - 5.70 0.5P - 4.80 0.5P - 5.70 1.0P - 10.30
POGO Type Cone Type Cone Type Cone Type Cone Type
Test Device Pich 0.4 mm 0.5 mm 0.5 mm 1.0 mm
Barrel Dia.  D 0.32 mm 0.38 mm 0.38 mm 0.57 mm
Free/Operating Length  L 0.57/5.05 mm 4.80/4.25 mm 5.70/5.05 mm 10.30/9.50 mm
Operating Stroke0.65(0.35+0.30) mm 0.55(0.25+0.30) mm 0.65(0.35+0.30) mm 0.80(0.50+0.30) mm
Tip Plunger Angle  A 60 degrees 60 degrees 60 degrees 90 degrees
Tip Plunger Angle  B 60 degrees 90 degrees 90 degrees 60 degrees
Spring Force (@W/S) 25±5 g·f
25±5 g·f
25±5 g·f
29±5 g·f
Operating Temperature-55℃ ~ +125 ℃
-55℃ ~ +125 ℃
-55℃ ~ +125 ℃
-55℃ ~ +125 ℃
Resistance @ Initial 200 mohm Max
100 mohm Max
100 mohm Max
100 mohm Max
Life Cycle 100,000 Cycle 100,000 Cycle 100,000 Cycle 100,000 Cycle
