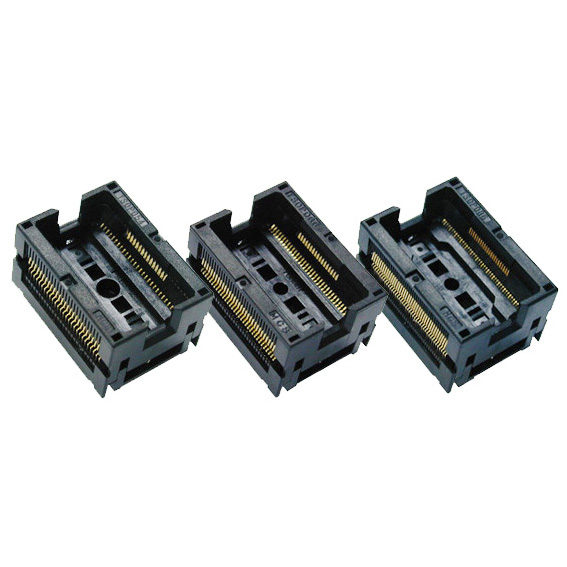

HOME >PRODUCT > TSOP



Feature

- Open top type for load & unload.
- Zero insertion force.
- Device-held live bug.
- Single/Double contact.



Electrical
Contact resistance <50m¥Ø @ 10mA, 20mV
Insulation resistance -55¡ÆC ~ +150¡ÆC
Withstanding voltage 700VAC/1minute
Current rating 1Amp
Cover actuation force 54(1.5kg¡¤f), 66(1.6kg¡¤f), 86(1.8kg¡¤f)

Mechanical
Contact force 40g¡¤f, 50g¡¤f
Temperature rating -55¡É ~ +150¡É
Life cycle Min.10,000cycle (1cycle=load & unload)

Pitch I/O Type Socket Size(L X W X H)
0.80 54 Single Contact 28.0 X 20.2 X 15.4
0.65 66 Single Contact
Double Contact
0.50 86 Single Contact
Double Contact
